Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated insulation voltage Ui500V
Built-in depth44mm
Leakage current typeA
Pollution degree2
Degree of protection (IP)IP20
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Number of poles4
Rated voltage400V
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Rated current40A
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Surge current capacity0.25kA
Rated fault current0.03A
Width in number of modular spacings4
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

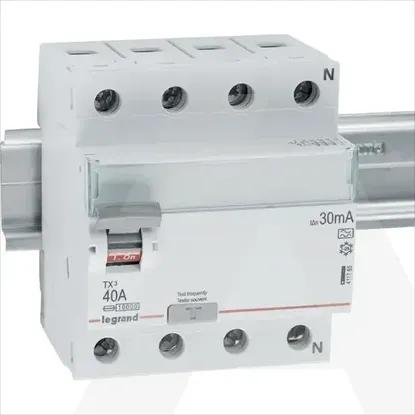

411765 | TX3 FID 4PD 40A A 30MA
