Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Leakage current typeA
Rated fault current100mA
Built-in depth44mm
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Selective protectionNo
Number of poles4
Degree of protection (IP)IP20
Pollution degree2
Rated insulation voltage Ui500V
Short-time delayed trippingNo
Width in number of modular spacings4
Rated current25A
Short-circuit breaking capacity (Icw)10kA
Rated voltage400V
Frequency50 Hz
Surge current capacity0.25kA
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

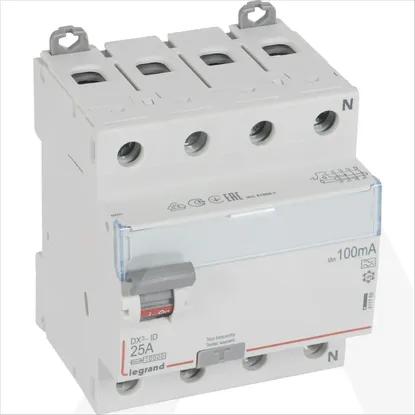

411769 | FID DX3-ID 4PD 25A A 100MA
