Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity0.25kA
Rated voltage400V
Mounting methodDIN rail
Built-in depth44mm
Rated fault current100mA
Short-circuit breaking capacity (Icw)10kA
Number of poles4
Selective protectionNo
Rated insulation voltage Ui500V
Leakage current typeA
Rated current63A
Short-time delayed trippingNo
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Pollution degree2
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Degree of protection (IP)IP20
Width in number of modular spacings4
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

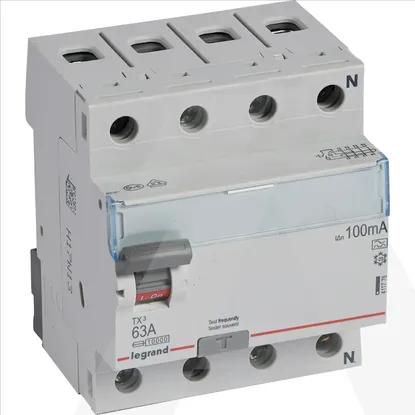

411776 | TX3 FID 4PD 63A A 100MA
