Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated voltage400V
Rated current80A
Selective protectionNo
Connectable conductor cross section multi-wired0.75 - 35mm²
Built-in depth44mm
Connectable conductor cross section solid-core0.75 - 50mm²
Rated fault current100mA
Width in number of modular spacings4
Number of poles4
Leakage current typeA
Short-time delayed trippingNo
Pollution degree2
Frequency50 Hz
Rated insulation voltage Ui500V
Surge current capacity0.25kA
Degree of protection (IP)IP20
Short-circuit breaking capacity (Icw)10kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

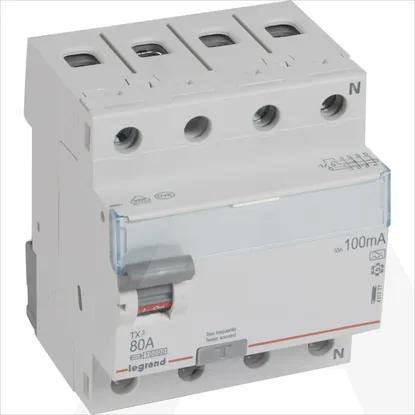

411777 | TX3 FID 4PD 80A A 100MA
