Technical specifications
Rated fault current300mA
Rated voltage400V
Ambient temperature during operating-25 - 60°C
Rated insulation voltage Ui500V
Frequency50 Hz
Leakage current typeA
Degree of protection (IP)IP20
Selective protectionNo
Surge current capacity0.25kA
Number of poles4
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings4
Rated current40A
Short-time delayed trippingNo
With interlocking deviceYes
Mounting methodDIN rail
Connectable conductor cross section multi-wired0.75 - 35mm²
Pollution degree2
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 50mm²
Built-in depth44mm
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

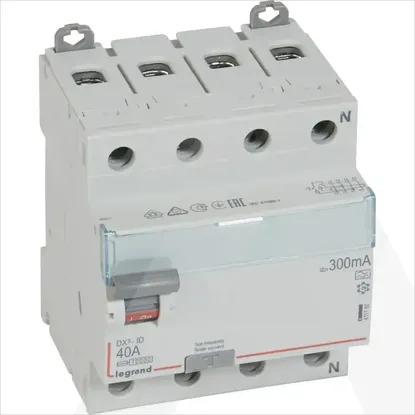

411780 | FID DX3-ID 4PD 40A A 300MA
