Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Leakage current typeA
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings4
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Rated current80A
Number of poles4
Selective protectionNo
Rated insulation voltage Ui500V
Rated impulse withstand voltage Uimp4kV
Rated voltage400V
Surge current capacity0.25kA
Short-time delayed trippingNo
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Pollution degree2
Rated fault current0.3A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

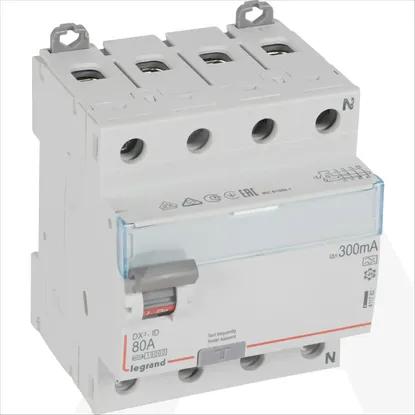

411782 | FID DX3-ID 4PD 80A A 300MA
