Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Pollution degree2
Rated insulation voltage Ui500V
Rated current100A
Leakage current typeA
Number of poles4
Selective protectionNo
Rated voltage400V
Rated fault current300mA
Built-in depth44mm
Surge current capacity0.25kA
Width in number of modular spacings4
Short-circuit breaking capacity (Icw)10kA
Short-time delayed trippingNo
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

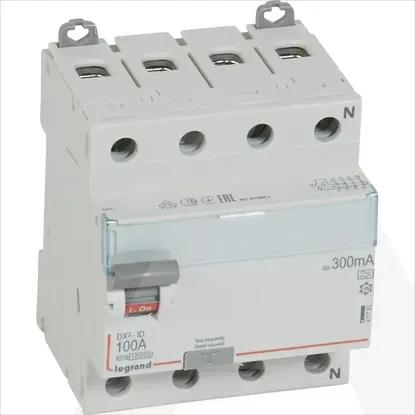

411783 | FID DX3-ID 4PD 100A A 300MA
