Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated insulation voltage Ui500V
Built-in depth44mm
Number of poles4
Rated current40A
Rated voltage400V
With interlocking deviceYes
Rated fault current300mA
Selective protectionNo
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Pollution degree2
Width in number of modular spacings4
Additional equipment possibleYes
Frequency50 Hz
Leakage current typeA
Short-time delayed trippingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

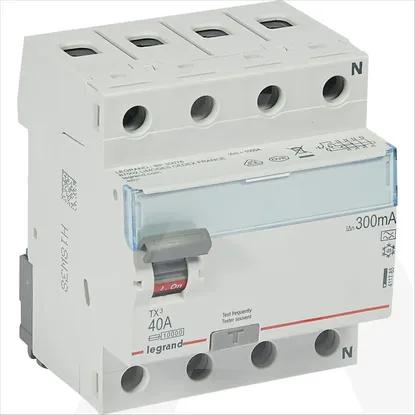

411785 | TX3 FID 4PD 40A A 300MA
