Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated current40A
Rated insulation voltage Ui500V
Built-in depth44mm
Rated voltage400V
Selective protectionNo
Rated fault current500mA
Short-circuit breaking capacity (Icw)10kA
Number of poles4
Mounting methodDIN rail
Leakage current typeA
Ambient temperature during operating-25 - 60°C
Short-time delayed trippingNo
Degree of protection (IP)IP20
Width in number of modular spacings4
Additional equipment possibleYes
With interlocking deviceYes
Surge current capacity0.25kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Pollution degree2
Connectable conductor cross section solid-core0.75 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

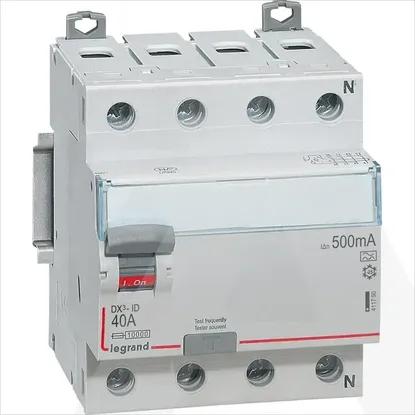

411790 | FID DX3-ID 4PD 40A A 500MA
