Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui500V
Pollution degree2
Number of poles4
Selective protectionYes
Leakage current typeA
Mounting methodDIN rail
Degree of protection (IP)IP20
Frequency50 Hz
Short-time delayed trippingYes
Short-circuit breaking capacity (Icw)10kA
Surge current capacity3kA
Rated voltage400V
Width in number of modular spacings4
Rated fault current300mA
Connectable conductor cross section solid-core0.75 - 50mm²
Rated current40A
Built-in depth44mm
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

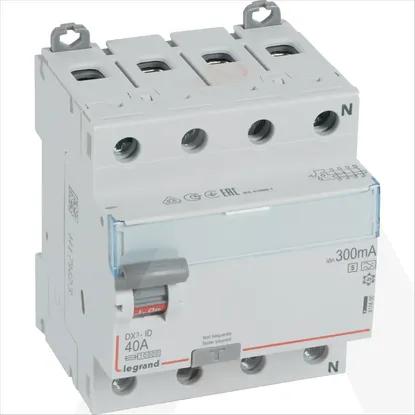

411800 | FID DX3-ID 4PD 40A A-S 300MA
