Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Rated current25A
Short-time delayed trippingYes
Leakage current typeA
Number of poles4
Selective protectionYes
Frequency50 Hz
Rated fault current300mA
Short-circuit breaking capacity (Icw)10kA
Pollution degree2
Rated insulation voltage Ui500V
Width in number of modular spacings4
Surge current capacity3kA
Rated voltage400V
Degree of protection (IP)IP20
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

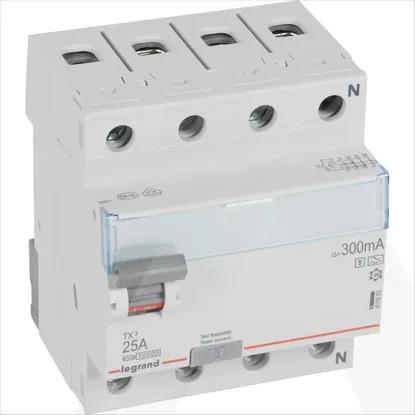

411803 | TX3 FID 4PD 25A A-S 300MA
