Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Rated insulation voltage Ui500V
Rated fault current300mA
Rated current63A
Number of poles4
Rated voltage400V
Pollution degree2
Width in number of modular spacings4
Selective protectionYes
Frequency50 Hz
Short-time delayed trippingYes
Connectable conductor cross section solid-core0.75 - 50mm²
Surge current capacity3kA
Degree of protection (IP)IP20
Leakage current typeA
Short-circuit breaking capacity (Icw)10kA
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

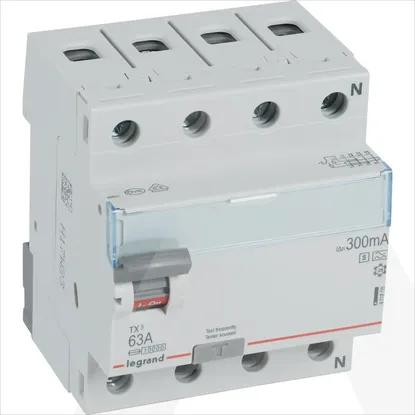

411805 | TX3 FID 4PD 63A A-S 300MA
