Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated voltage400V
Rated insulation voltage Ui500V
Built-in depth44mm
Rated current80A
Leakage current typeA
Selective protectionYes
Rated fault current300mA
Number of poles4
Surge current capacity3kA
With interlocking deviceYes
Pollution degree2
Frequency50 Hz
Additional equipment possibleYes
Width in number of modular spacings4
Connectable conductor cross section solid-core0.75 - 50mm²
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Degree of protection (IP)IP20
Short-time delayed trippingYes
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

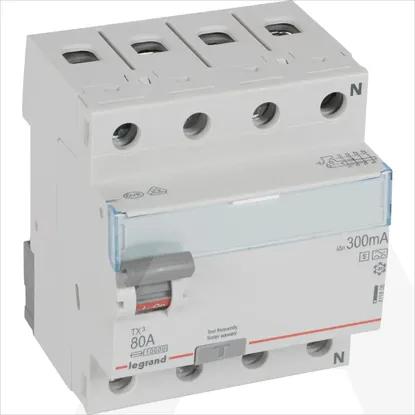

411806 | TX3 FID 4PD 80A A-S 300MA
