Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated voltage400V
Built-in depth44mm
Rated current40A
Rated fault current500mA
Short-time delayed trippingYes
Rated insulation voltage Ui500V
Selective protectionYes
Leakage current typeA
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings4
Pollution degree2
Surge current capacity3kA
Number of poles4
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

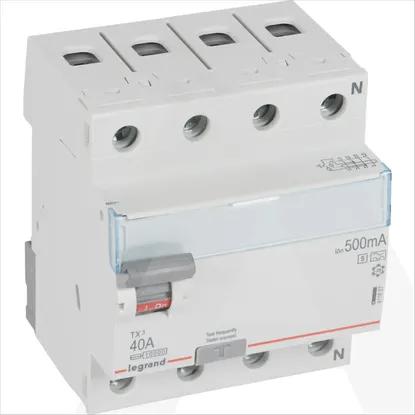

411807 | TX3 FID 4PD 40A A-S 500MA
