Details
- •Circuit breakers and fuses

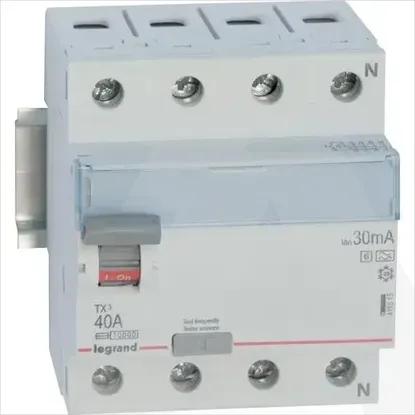

- •Residual current circuit breaker (RCCB)
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated insulation voltage Ui500V
Mounting methodDIN rail
Pollution degree2
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Selective protectionNo
Short-time delayed trippingYes
Surge current capacity3kA
Width in number of modular spacings4
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
Ambient temperature during operating-25 - 60°C
Rated current40A
Rated voltage400V
Number of poles4
Rated fault current0.03A
Leakage current typeF
