Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Number of conductors (without earthing)4
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactNo
Voltage protection level L-N1.2kV
Max. continuous voltage AC320V
Voltage protection level-kV
Nominal voltage AC400V
Construction size4 modular spacing
Integrated backup fuseNo
Voltage protection level N-PE1.5kV
Nominal voltage DC-V
Nominal discharge surge current (8/20)5kA
Max. PV-voltage-V
System configuration DCNo
System configuration ITNo
Category type 2Yes
Max. conductor cross section flexible (fine-strand)25mm²
Signalling at the deviceOptic
Degree of protection (IP)IP20
System configuration TN-C-SNo
Max. continuous voltage DC-V
System configuration TNNo
Max. discharge surge current (8/20)-kA
System configuration TN-CNo
System configuration otherNo
System configuration TTYes
System configuration TN-SNo
Max. conductor cross section solid (solid, stranded)35mm²
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

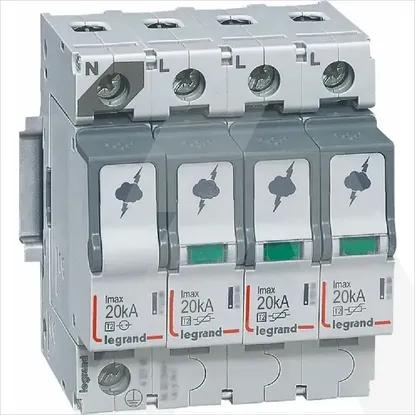

412225 | ODV PREN KL2 20KA 4P
