Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level-kV
With remote signalling contactNo
Max. continuous voltage AC320V
Number of conductors (without earthing)2
Construction size2 modular spacing
Nominal discharge surge current (8/20)5kA
Nominal voltage AC230V
Category type 2Yes
Voltage protection level L-N1.2kV
System configuration ITNo
Max. PV-voltage-V
System configuration TN-C-SNo
Signalling at the deviceOptic
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TTYes
Voltage protection level N-PE1.5kV
Max. continuous voltage DC-V
System configuration DCNo
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TN-SNo
System configuration TNNo
Degree of protection (IP)IP20
Short-circuit breaking capacity (Isccr)-kA
System configuration otherNo
Integrated backup fuseNo
Max. discharge surge current (8/20)-kA
System configuration TN-CNo
Nominal voltage DC-V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

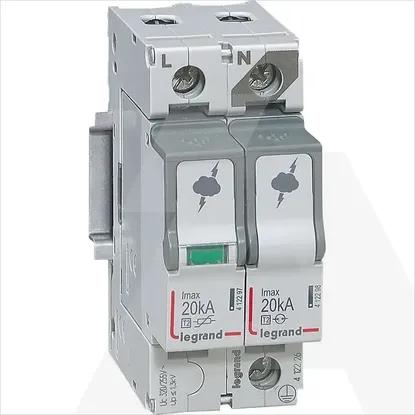

412226 | ODV PREN KL2 20KA 2P
