Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Construction size3 modular spacing
Voltage protection level2.1kV
With remote signalling contactYes
Number of conductors (without earthing)3
Max. continuous voltage AC440V
Voltage protection level L-N-kV
Nominal voltage AC230V
Nominal discharge surge current (8/20)20kA
Degree of protection (IP)IP20
System configuration ITYes
Max. conductor cross section solid (solid, stranded)35mm²
Integrated backup fuseNo
Voltage protection level N-PE-kV
System configuration TN-SNo
System configuration otherNo
Max. continuous voltage DC-V
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TN-CNo
System configuration DCNo
Nominal voltage DC-V
Signalling at the deviceOptic
System configuration TN-C-SNo
System configuration TTNo
Max. PV-voltage-V
Category type 2Yes
System configuration TNNo
Short-circuit breaking capacity (Isccr)-kA
Max. discharge surge current (8/20)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

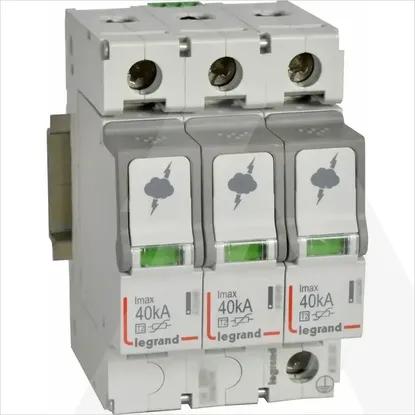

412232 | ODV PREN KL2 40KA 3P +SD
