Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Max. continuous voltage AC440V
Voltage protection level2.1kV
With remote signalling contactYes
Construction size4 modular spacing
Number of conductors (without earthing)4
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level L-N-kV
Nominal voltage DC-V
Max. continuous voltage DC-V
Category type 2Yes
Signalling at the deviceOptic
Max. PV-voltage-V
System configuration ITYes
System configuration TTNo
System configuration DCNo
Integrated backup fuseNo
System configuration TN-CNo
Voltage protection level N-PE-kV
Max. conductor cross section flexible (fine-strand)25mm²
Max. conductor cross section solid (solid, stranded)35mm²
Short-circuit breaking capacity (Isccr)-kA
Max. discharge surge current (8/20)-kA
System configuration TN-C-SNo
System configuration TN-SNo
System configuration TNNo
System configuration otherNo
Nominal discharge surge current (8/20)20kA
Nominal voltage AC230V
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

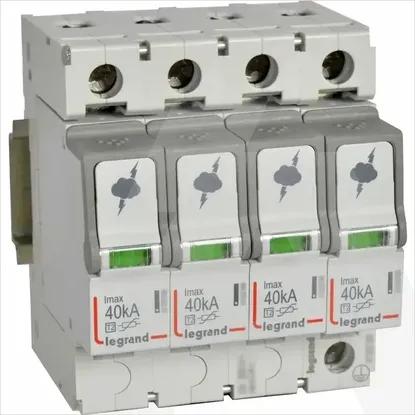

412233 | ODV Pren KL2 40KA 4P +SD
