Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Construction size2 modular spacing
Max. continuous voltage AC320V
Nominal voltage DC-V
Signalling at the deviceOptic
Voltage protection level N-PE-kV
Number of conductors (without earthing)2
Category type 2Yes
Voltage protection level1.7kV
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactNo
Integrated backup fuseNo
Max. conductor cross section solid (solid, stranded)35mm²
Voltage protection level L-N-kV
Max. continuous voltage DC-V
Max. PV-voltage-V
System configuration ITNo
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TN-CNo
System configuration DCNo
System configuration TNNo
System configuration otherNo
System configuration TTNo
System configuration TN-C-SNo
Short-circuit breaking capacity (Isccr)-kA
System configuration TN-SYes
Max. discharge surge current (8/20)-kA
Nominal discharge surge current (8/20)20kA
Nominal voltage AC230V
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

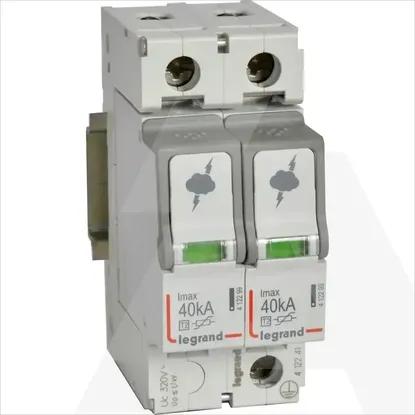

412241 | ODV Pren KL2 40KA 2P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Earthing, lightning and surge protection
- Surge protection device for power supply systems
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Construction size
2 modular spacing
Max. continuous voltage AC
320V
Nominal voltage DC
-V
Signalling at the device
Optic
Voltage protection level N-PE
-kV
Number of conductors (without earthing)
2
Category type 2
Voltage protection level
1.7kV
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
Integrated backup fuse
Max. conductor cross section solid (solid, stranded)
35mm²
Voltage protection level L-N
-kV
Max. continuous voltage DC
-V
Max. PV-voltage
-V
System configuration IT
Max. conductor cross section flexible (fine-strand)
25mm²
System configuration TN-C
System configuration DC
System configuration TN
System configuration other
System configuration TT
System configuration TN-C-S
Short-circuit breaking capacity (Isccr)
-kA
System configuration TN-S
Max. discharge surge current (8/20)
-kA
Nominal discharge surge current (8/20)
20kA
Nominal voltage AC
230V
Degree of protection (IP)
IP20
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
