Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Construction size3 modular spacing
Nominal discharge surge current (8/20)20kA
With remote signalling contactYes
Category type 2Yes
Number of conductors (without earthing)3
Voltage protection level L-N-kV
Signalling at the deviceOptic
Nominal voltage DC-V
Max. continuous voltage DC-V
Max. continuous voltage AC320V
Nominal voltage AC230V
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level1.7kV
Degree of protection (IP)IP20
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TN-CYes
Short-circuit breaking capacity (Isccr)-kA
System configuration DCNo
Max. discharge surge current (8/20)-kA
Max. PV-voltage-V
Voltage protection level N-PE-kV
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TTNo
System configuration TN-SNo
System configuration ITNo
System configuration TN-C-SNo
System configuration otherNo
System configuration TNNo
Integrated backup fuseNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

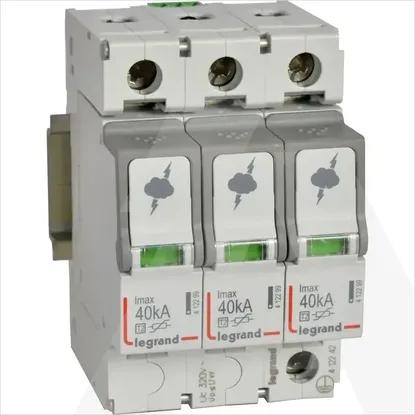

412242 | ODV PREN KL2 40KA 3P +SD
