Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
With remote signalling contactNo
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level1.7kV
Nominal voltage AC230V
Nominal discharge surge current (8/20)20kA
Number of conductors (without earthing)4
Max. continuous voltage AC320V
Nominal voltage DC-V
Construction size4 modular spacing
Voltage protection level L-N-kV
System configuration DCNo
Signalling at the deviceOptic
Max. conductor cross section solid (solid, stranded)35mm²
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TTNo
Voltage protection level N-PE-kV
System configuration TN-SYes
System configuration ITNo
Max. PV-voltage-V
Integrated backup fuseNo
System configuration TNNo
Max. continuous voltage DC-V
Degree of protection (IP)IP20
System configuration TN-CNo
System configuration otherNo
System configuration TN-C-SNo
Short-circuit breaking capacity (Isccr)-kA
Max. discharge surge current (8/20)-kA
Category type 2Yes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

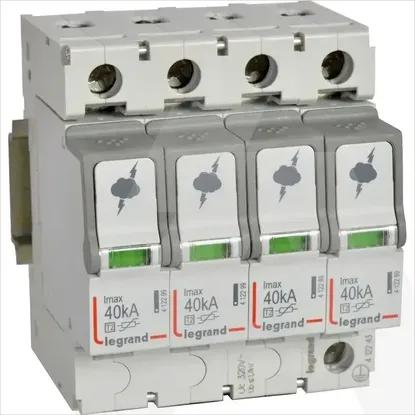

412243 | ODV PREN KL2 40KA 4P
