Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Max. continuous voltage AC320V
Number of conductors (without earthing)2
Mounting methodDIN rail (top hat rail) 35 mm
Category type 2Yes
Voltage protection level1.7kV
Nominal voltage AC230V
With remote signalling contactNo
Nominal discharge surge current (8/20)20kA
Nominal voltage DC-V
Construction size2 modular spacing
Signalling at the deviceOptic
Voltage protection level L-N-kV
System configuration DCNo
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TTNo
System configuration TN-C-SNo
Max. conductor cross section flexible (fine-strand)25mm²
Max. continuous voltage DC-V
Voltage protection level N-PE-kV
Degree of protection (IP)IP20
System configuration TN-SYes
Max. PV-voltage-V
Max. discharge surge current (8/20)-kA
System configuration TN-CNo
System configuration TNNo
Integrated backup fuseNo
Short-circuit breaking capacity (Isccr)-kA
System configuration otherNo
System configuration ITNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

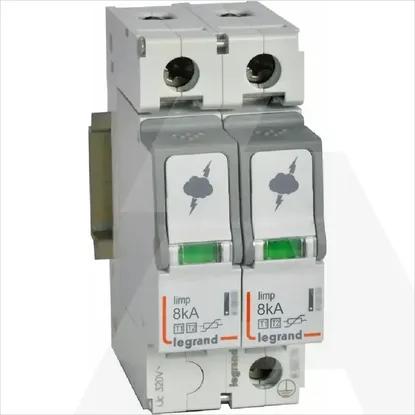

412251 | ODV PREN KL1+KL2 50KA 2P
