Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Construction size3 modular spacing
Max. continuous voltage AC320V
Nominal discharge surge current (8/20)20kA
Nominal voltage AC400V
Voltage protection level1.7kV
Number of conductors (without earthing)3
With remote signalling contactNo
Nominal voltage DC-V
Voltage protection level N-PE-kV
Max. continuous voltage DC-V
Max. conductor cross section solid (solid, stranded)35mm²
Degree of protection (IP)IP20
Category type 2Yes
Max. PV-voltage-V
Voltage protection level L-N-kV
Integrated backup fuseNo
Signalling at the deviceOptic
System configuration TNNo
System configuration DCNo
System configuration TN-CYes
System configuration TN-SNo
System configuration otherNo
System configuration TN-C-SNo
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TTNo
Max. discharge surge current (8/20)-kA
System configuration ITNo
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

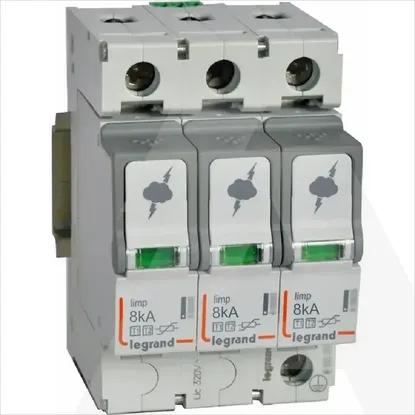

412252 | ODV PREN KL1+KL2 50KA 3P
