Details

  • •Earthing, lightning and surge protection
  • •Surge protection device for power supply systems
  • •1 KOM
  • •LEGRAND

Technical specifications

Degree of protection (IP)IP20
Mounting methodDIN rail (top hat rail) 35 mm
Construction size8 modular spacing
Max. continuous voltage AC320V
Signalling at the deviceOptic
Number of conductors (without earthing)4
Max. continuous voltage DC-V
Voltage protection level1.3kV
Nominal voltage AC400V
Voltage protection level L-N1.2kV
Max. conductor cross section flexible (fine-strand)25mm²
Max. conductor cross section solid (solid, stranded)35mm²
With remote signalling contactYes
Integrated backup fuseNo
Nominal voltage DC-V
Nominal discharge surge current (8/20)5kA
Voltage protection level N-PE1.4kV
System configuration DCNo
System configuration TNNo
System configuration TN-SNo
System configuration TTYes
System configuration ITNo
System configuration TN-CNo
System configuration TN-C-SNo
System configuration otherNo
Max. PV-voltage-V
Category type 2Yes
Max. discharge surge current (8/20)-kA
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

412261 | ODV PREN KL2 20KA D MOD 4P +SD

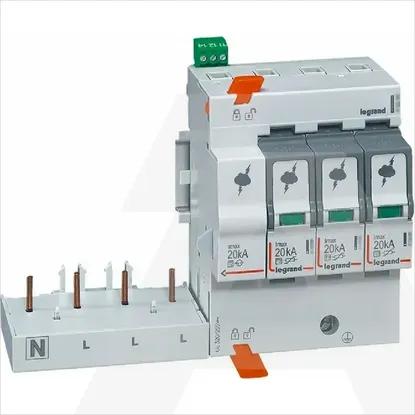

Main Product Image

Details

  • Earthing, lightning and surge protection
  • Surge protection device for power supply systems
  • 1 KOM
  • LEGRAND

Technical specifications

Degree of protection (IP)

IP20

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

8 modular spacing

Max. continuous voltage AC

320V

Signalling at the device

Optic

Number of conductors (without earthing)

4

Max. continuous voltage DC

-V

Voltage protection level

1.3kV

Nominal voltage AC

400V

Voltage protection level L-N

1.2kV

Max. conductor cross section flexible (fine-strand)

25mm²

Max. conductor cross section solid (solid, stranded)

35mm²

With remote signalling contact

Integrated backup fuse

Nominal voltage DC

-V

Nominal discharge surge current (8/20)

5kA

Voltage protection level N-PE

1.4kV

System configuration DC

System configuration TN

System configuration TN-S

System configuration TT

System configuration IT

System configuration TN-C

System configuration TN-C-S

System configuration other

Max. PV-voltage

-V

Category type 2

Max. discharge surge current (8/20)

-kA

Short-circuit breaking capacity (Isccr)

-kA
