Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Max. conductor cross section flexible (fine-strand)25mm²
Voltage protection level1.9kV
Nominal voltage DC-V
Nominal voltage AC230V
Degree of protection (IP)IP20
Number of conductors (without earthing)1
Max. continuous voltage AC320V
Category type 2Yes
With remote signalling contactNo
Max. continuous voltage DC-V
System configuration ITNo
Signalling at the deviceOptic
Max. conductor cross section solid (solid, stranded)35mm²
System configuration DCNo
System configuration TN-CNo
Mounting methodDIN rail (top hat rail) 35 mm
System configuration TN-SNo
Voltage protection level N-PE-kV
System configuration TNNo
Voltage protection level L-N-kV
Integrated backup fuseNo
Construction size1 modular spacing
Nominal discharge surge current (8/20)25kA
Max. PV-voltage-V
System configuration TN-C-SNo
System configuration TTNo
Short-circuit breaking capacity (Isccr)-kA
System configuration otherYes
Max. discharge surge current (8/20)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

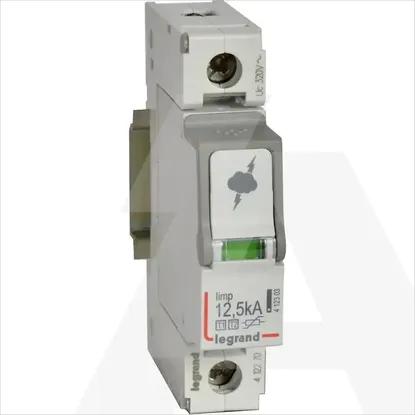

412270 | ODV PREN KL1+KL2 60KA 1P
