Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)4
With remote signalling contactNo
Construction size4 modular spacing
Voltage protection level1.9kV
Category type 2Yes
Nominal voltage DC-V
Integrated backup fuseNo
Max. continuous voltage AC320V
Nominal discharge surge current (8/20)25kA
Voltage protection level L-N-kV
System configuration ITNo
Voltage protection level N-PE-kV
Nominal voltage AC400V
Max. continuous voltage DC-V
Degree of protection (IP)IP20
System configuration TNNo
Signalling at the deviceOptic
Max. conductor cross section solid (solid, stranded)35mm²
System configuration DCNo
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TN-CNo
Max. PV-voltage-V
System configuration otherNo
System configuration TTNo
System configuration TN-C-SNo
System configuration TN-SYes
Short-circuit breaking capacity (Isccr)-kA
Max. discharge surge current (8/20)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

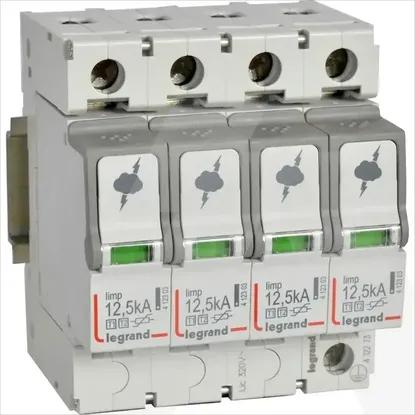

412273 | ODV PREN KL1+KL2 60KA 4P
