Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Construction size4 modular spacing
Nominal voltage DC-V
Nominal discharge surge current (8/20)25kA
Voltage protection level L-N2.2kV
Max. continuous voltage AC320V
Degree of protection (IP)IP20
Number of conductors (without earthing)4
Signalling at the deviceOptic
Max. continuous voltage DC-V
With remote signalling contactYes
Category type 2Yes
Nominal voltage AC400V
Mounting methodDIN rail (top hat rail) 35 mm
Max. PV-voltage-V
Voltage protection level-kV
Integrated backup fuseNo
Max. conductor cross section flexible (fine-strand)25mm²
Short-circuit breaking capacity (Isccr)-kA
System configuration otherNo
Max. conductor cross section solid (solid, stranded)35mm²
Voltage protection level N-PE1.5kV
Max. discharge surge current (8/20)-kA
System configuration TN-C-SNo
System configuration TNNo
System configuration TTYes
System configuration DCNo
System configuration TN-SNo
System configuration TN-CNo
System configuration ITNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

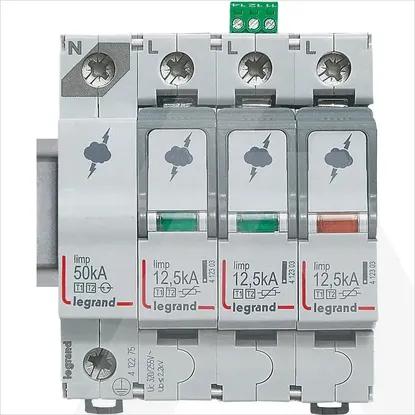

412275 | ODV PREN KL1+KL2 60KA 4P +SD
