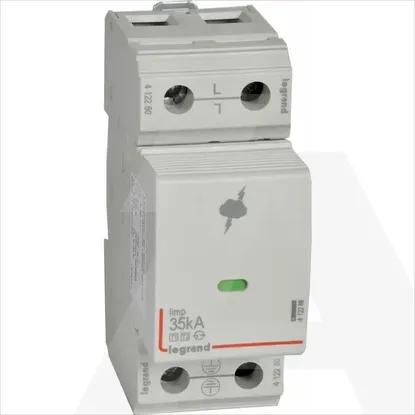

412280 | ODV PREN KL1 KA 1P +SD
Code: 1779188
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Mounting methodDIN rail (top hat rail) 35 mm
Construction size2 modular spacing
Max. continuous voltage AC440V
Signalling at the deviceOptic
Number of conductors (without earthing)1
Max. continuous voltage DC-V
Voltage protection level2.5kV
Nominal voltage AC400V
Voltage protection level L-N-kV
Max. conductor cross section flexible (fine-strand)35mm²
Max. conductor cross section solid (solid, stranded)35mm²
Integrated backup fuseNo
Nominal voltage DC-V
With remote signalling contactYes
Nominal discharge surge current (8/20)25kA
System configuration DCNo
Voltage protection level N-PE-kV
System configuration TNNo
System configuration TN-SNo
System configuration ITYes
System configuration TTNo
System configuration TN-CNo
System configuration TN-C-SNo
System configuration otherNo
Max. PV-voltage-V
Category type 2No
Max. discharge surge current (8/20)-kA
Short-circuit breaking capacity (Isccr)-kA
