Details
- •Earthing, lightning and surge protection

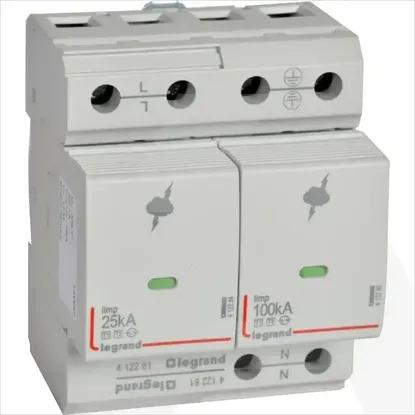

- •Surge protection device for power supply systems
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Construction size4 modular spacing
With remote signalling contactYes
Number of conductors (without earthing)2
Mounting methodDIN rail (top hat rail) 35 mm
Nominal voltage DC-V
Voltage protection level2.5kV
Max. continuous voltage AC350V
Voltage protection level L-N1.5kV
System configuration TNNo
Signalling at the deviceOptic
Max. continuous voltage DC-V
Category type 2No
Voltage protection level N-PE1.5kV
System configuration TN-SNo
Max. conductor cross section flexible (fine-strand)25mm²
System configuration DCNo
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TN-CNo
System configuration TTYes
Integrated backup fuseNo
System configuration ITNo
Max. PV-voltage-V
System configuration otherNo
System configuration TN-C-SNo
Short-circuit breaking capacity (Isccr)-kA
Max. discharge surge current (8/20)-kA
Nominal discharge surge current (8/20)25kA
Nominal voltage AC400V
Degree of protection (IP)IP20
