Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Nominal discharge surge current (8/20)25kA
Voltage protection level1.5kV
Nominal voltage AC400V
Nominal voltage DC-V
Construction size6 modular spacing
Voltage protection level L-N-kV
Number of conductors (without earthing)3
With remote signalling contactYes
Category type 2No
Max. continuous voltage AC350V
Integrated backup fuseNo
Max. PV-voltage-V
Voltage protection level N-PE-kV
Degree of protection (IP)IP20
Max. continuous voltage DC-V
Signalling at the deviceOptic
System configuration TN-CYes
System configuration TNNo
System configuration TN-C-SNo
Max. conductor cross section flexible (fine-strand)25mm²
System configuration DCNo
Max. conductor cross section solid (solid, stranded)35mm²
System configuration ITNo
System configuration otherNo
System configuration TTNo
System configuration TN-SNo
Short-circuit breaking capacity (Isccr)-kA
Max. discharge surge current (8/20)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

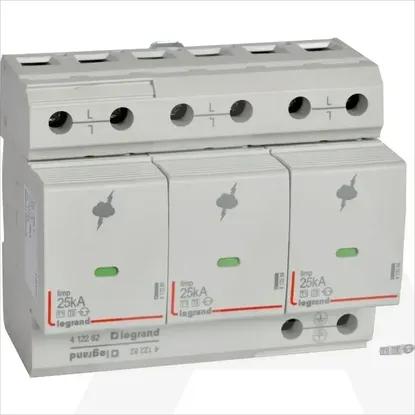

412282 | ODV PREN KL1 KA 3P +SD
