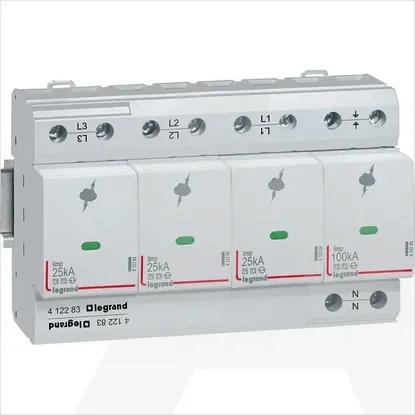

412283 | ODV PREN KL1 KA 4P +SD
Code: 1779191
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Mounting methodDIN rail (top hat rail) 35 mm
Construction size8 modular spacing
Max. continuous voltage AC350V
Signalling at the deviceOptic
Number of conductors (without earthing)4
Max. continuous voltage DC-V
Voltage protection level2.5kV
Nominal voltage AC400V
Voltage protection level L-N1.5kV
Max. conductor cross section flexible (fine-strand)25mm²
Max. conductor cross section solid (solid, stranded)35mm²
Integrated backup fuseNo
Nominal voltage DC-V
With remote signalling contactYes
Nominal discharge surge current (8/20)25kA
System configuration DCNo
Voltage protection level N-PE1.5kV
System configuration TNNo
System configuration TN-SNo
System configuration ITNo
System configuration TTYes
System configuration TN-CNo
System configuration TN-C-SNo
System configuration otherNo
Max. PV-voltage-V
Category type 2No
Max. discharge surge current (8/20)-kA
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
