Details

  • •Earthing, lightning and surge protection
  • •Surge protection device for power supply systems
  • •1 KOM
  • •LEGRAND

Technical specifications

Degree of protection (IP)IP20
Construction size2 modular spacing
Max. continuous voltage AC350V
Signalling at the deviceOptic
Number of conductors (without earthing)-
Max. continuous voltage DC-V
Voltage protection level2.5kV
Nominal voltage AC400V
Voltage protection level L-N1.5kV
Max. conductor cross section flexible (fine-strand)-mm²
Max. conductor cross section solid (solid, stranded)-mm²
Integrated backup fuseNo
Nominal voltage DC-V
With remote signalling contactNo
Nominal discharge surge current (8/20)25kA
System configuration DCNo
Voltage protection level N-PE1.5kV
System configuration TNNo
System configuration TN-SNo
System configuration ITNo
System configuration TTNo
System configuration TN-CNo
System configuration TN-C-SNo
System configuration otherYes
Max. PV-voltage-V
Category type 2No
Max. discharge surge current (8/20)-kA
Short-circuit breaking capacity (Isccr)-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

412284 | ODV PREN KL1 KA MODUL

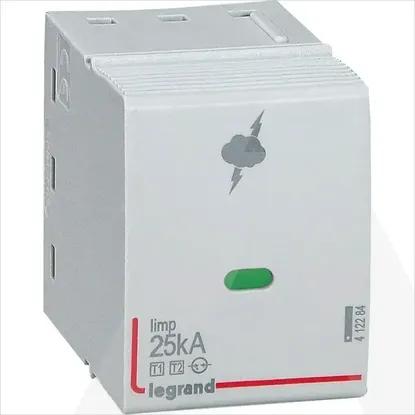

Main Product Image

Details

  • Earthing, lightning and surge protection
  • Surge protection device for power supply systems
  • 1 KOM
  • LEGRAND

Technical specifications

Degree of protection (IP)

IP20

Construction size

2 modular spacing

Max. continuous voltage AC

350V

Signalling at the device

Optic

Number of conductors (without earthing)

-

Max. continuous voltage DC

-V

Voltage protection level

2.5kV

Nominal voltage AC

400V

Voltage protection level L-N

1.5kV

Max. conductor cross section flexible (fine-strand)

-mm²

Max. conductor cross section solid (solid, stranded)

-mm²

Integrated backup fuse

Nominal voltage DC

-V

With remote signalling contact

Nominal discharge surge current (8/20)

25kA

System configuration DC

Voltage protection level N-PE

1.5kV

System configuration TN

System configuration TN-S

System configuration IT

System configuration TT

System configuration TN-C

System configuration TN-C-S

System configuration other

Max. PV-voltage

-V

Category type 2

Max. discharge surge current (8/20)

-kA

Short-circuit breaking capacity (Isccr)

-kA
