Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Voltage protection level2.5kV
Number of conductors (without earthing)-
Category type 2No
Construction size2 modular spacing
Nominal discharge surge current (8/20)25kA
Voltage protection level L-N1.5kV
Nominal voltage AC400V
Max. continuous voltage AC350V
Nominal voltage DC-V
Signalling at the deviceOptic
With remote signalling contactNo
Short-circuit breaking capacity (Isccr)-kA
System configuration TTNo
Max. continuous voltage DC-V
Max. conductor cross section solid (solid, stranded)-mm²
Max. PV-voltage-V
Max. discharge surge current (8/20)-kA
System configuration otherYes
System configuration TN-SNo
System configuration TN-C-SNo
Voltage protection level N-PE1.5kV
Max. conductor cross section flexible (fine-strand)-mm²
System configuration TNNo
Integrated backup fuseNo
System configuration DCNo
System configuration TN-CNo
Degree of protection (IP)IP20
System configuration ITNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

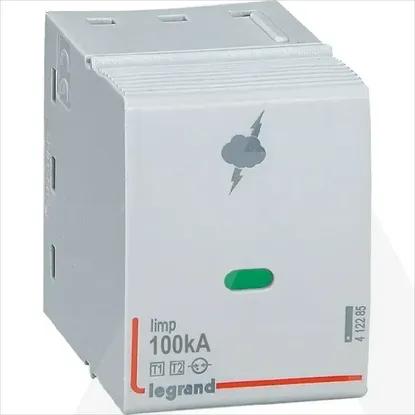

412285 | ODV PREN KL1 KA MODUL
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Earthing, lightning and surge protection
- Surge protection device for power supply systems
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage protection level
2.5kV
Number of conductors (without earthing)
-
Category type 2
Construction size
2 modular spacing
Nominal discharge surge current (8/20)
25kA
Voltage protection level L-N
1.5kV
Nominal voltage AC
400V
Max. continuous voltage AC
350V
Nominal voltage DC
-V
Signalling at the device
Optic
With remote signalling contact
Short-circuit breaking capacity (Isccr)
-kA
System configuration TT
Max. continuous voltage DC
-V
Max. conductor cross section solid (solid, stranded)
-mm²
Max. PV-voltage
-V
Max. discharge surge current (8/20)
-kA
System configuration other
System configuration TN-S
System configuration TN-C-S
Voltage protection level N-PE
1.5kV
Max. conductor cross section flexible (fine-strand)
-mm²
System configuration TN
Integrated backup fuse
System configuration DC
System configuration TN-C
Degree of protection (IP)
IP20
System configuration IT
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
