Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Number of conductors (without earthing)-
With remote signalling contactNo
Max. continuous voltage AC320V
Nominal voltage DC-V
Nominal discharge surge current (8/20)5kA
Voltage protection level-kV
Construction size1 modular spacing
Nominal voltage AC230V
Signalling at the deviceOptic
Max. continuous voltage DC-V
Category type 2Yes
Voltage protection level L-N1.2kV
Max. PV-voltage-V
System configuration ITNo
Max. conductor cross section solid (solid, stranded)-mm²
System configuration TN-CNo
System configuration DCNo
Degree of protection (IP)IP20
System configuration TN-C-SNo
System configuration TNNo
Voltage protection level N-PE1.5kV
Max. discharge surge current (8/20)-kA
Max. conductor cross section flexible (fine-strand)-mm²
System configuration TTNo
System configuration otherYes
System configuration TN-SNo
Short-circuit breaking capacity (Isccr)-kA
Integrated backup fuseNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

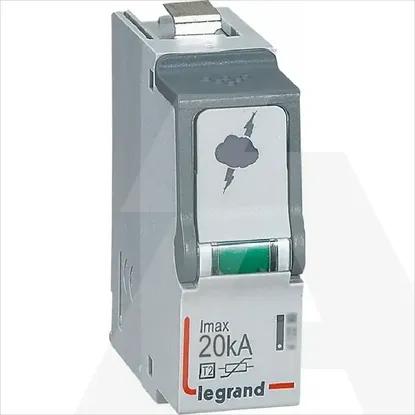

412297 | ODV PREN KL2 20KA MODUL
