Details
- •Earthing, lightning and surge protection

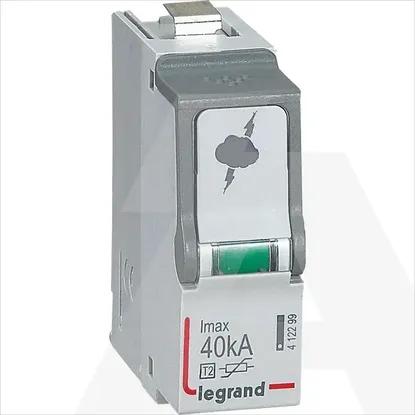

- •Surge protection device for power supply systems
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Number of conductors (without earthing)-
With remote signalling contactNo
Construction size1 modular spacing
Voltage protection level-kV
Max. continuous voltage DC-V
Voltage protection level L-N1.7kV
Signalling at the deviceOptic
Max. continuous voltage AC320V
Category type 2Yes
Nominal voltage DC-V
Max. PV-voltage-V
Max. conductor cross section solid (solid, stranded)-mm²
Voltage protection level N-PE1.5kV
System configuration DCNo
System configuration otherYes
System configuration ITNo
System configuration TN-SNo
System configuration TN-C-SNo
Max. conductor cross section flexible (fine-strand)-mm²
System configuration TN-CNo
Integrated backup fuseNo
Max. discharge surge current (8/20)-kA
System configuration TTNo
System configuration TNNo
Short-circuit breaking capacity (Isccr)-kA
Nominal discharge surge current (8/20)15kA
Nominal voltage AC230V
Degree of protection (IP)IP20
