Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •LEGRAND
Technical specifications
Nominal discharge surge current (8/20)20kA
Max. continuous voltage AC440V
Construction size1 modular spacing
Voltage protection level2.1kV
With remote signalling contactNo
Number of conductors (without earthing)-
Nominal voltage AC400V
Category type 2Yes
Nominal voltage DC-V
Max. continuous voltage DC-V
Signalling at the deviceOptic
Max. conductor cross section flexible (fine-strand)-mm²
Voltage protection level L-N-kV
Integrated backup fuseNo
Max. discharge surge current (8/20)-kA
System configuration TN-C-SNo
Degree of protection (IP)IP20
System configuration TTNo
System configuration TN-CNo
System configuration TN-SNo
System configuration ITNo
Short-circuit breaking capacity (Isccr)-kA
Voltage protection level N-PE-kV
System configuration TNNo
Max. PV-voltage-V
System configuration DCNo
System configuration otherYes
Max. conductor cross section solid (solid, stranded)-mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

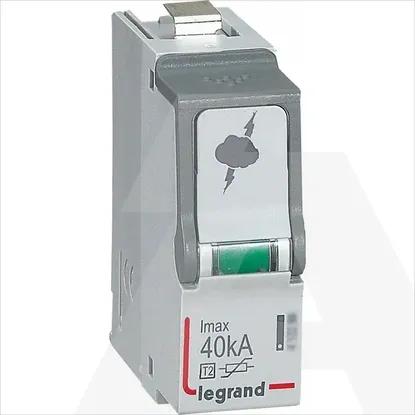

412301 | ODV PREN KL2 40KA MODUL
