Details
- •Devices for distribution board-/surface mounting
- •Installation contactor for distribution board
- •1 KOM
- •LEGRAND
Technical specifications
Number of modular spacings3
Max. load fluorescent lamp (Duo circuit)3400VA
Built-in depth44mm
Max. incandescent lamp load5000W
Max. load fluorescent lamp3100VA
Max. load fluorescent lamp (parallel compensated)1400VA
Slider for hand switchYes
Utility category1
Degree of protection (IP)IP2X
Rated excitation voltage195 - 253V
Additional equipment possibleYes
Voltage type (operating voltage)AC
Number of contacts as normally closed contact0
Rated operating voltage400 - 400V
Voltage type (excitation voltage)AC
Rated operation current40A
Number of contacts as normally open contact4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

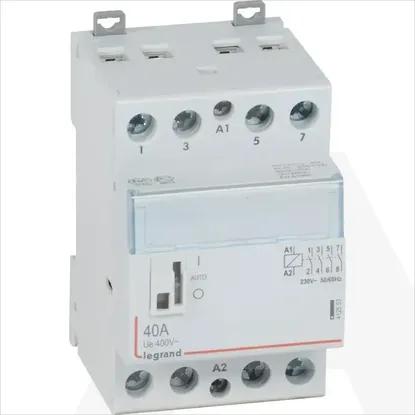

412553 | CX3-SKLOPNIK 40A 4NO 230V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Devices for distribution board-/surface mounting
- Installation contactor for distribution board
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Number of modular spacings
3
Max. load fluorescent lamp (Duo circuit)
3400VA
Built-in depth
44mm
Max. incandescent lamp load
5000W
Max. load fluorescent lamp
3100VA
Max. load fluorescent lamp (parallel compensated)
1400VA
Slider for hand switch
Utility category
1
Degree of protection (IP)
IP2X
Rated excitation voltage
195 .. 253V
Additional equipment possible
Voltage type (operating voltage)
AC
Number of contacts as normally closed contact
0
Rated operating voltage
400 .. 400V
Voltage type (excitation voltage)
AC
Rated operation current
40A
Number of contacts as normally open contact
4
