Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •12 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Over voltage category-
Built-in depth44mm
Release characteristicB
Degree of protection (IP)IP20
Pollution degree2
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Additional equipment possibleNo
Connectable conductor cross section multi-wired- - -mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating- - -°C
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Number of poles (total)1
Rated current10A
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Width in number of modular spacings1
Number of protected poles1
Concurrently switching neutral conductorNo
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

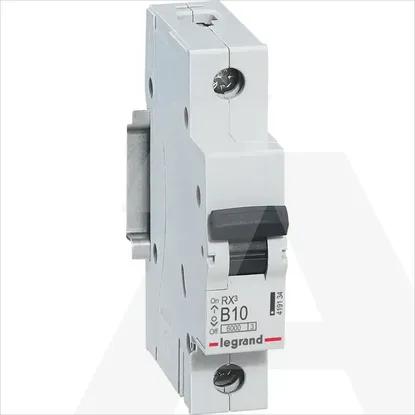

419134 | RX3 Autom Osig 1P B 10A 6KA 1M
