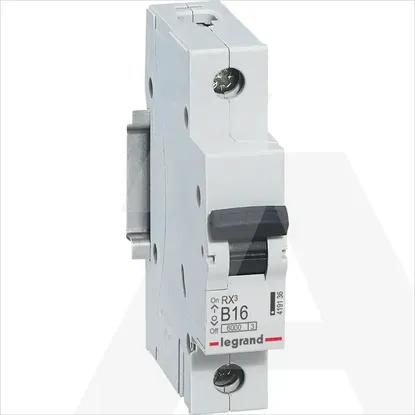

419136 | RX3 Autom Osig 1P B 16A 6KA 1M
Code: 1780047
ManufacturerLegrand
Catalog number419136
TypeLegrand 419136
CategoryMiniature circuit breaker (MCB)
EAN code3414970366726
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated impulse withstand voltage Uimp4kV
Over voltage category-
Pollution degree2
Ambient temperature during operating- - -°C
Frequency50 - 60Hz
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Additional equipment possibleNo
Rated insulation voltage Ui500V
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Number of protected poles1
Current limiting class3
Rated voltage230V
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Rated current16A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
From same serie
