Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •4 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated current6A
Built-in depth44mm
Current limiting class3
Width in number of modular spacings3
Frequency50 - 60Hz
Release characteristicB
Pollution degree2
Over voltage category-
Rated voltage400V
Rated insulation voltage Ui500V
Concurrently switching neutral conductorNo
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired- - -mm²
Additional equipment possibleNo
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of poles (total)3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

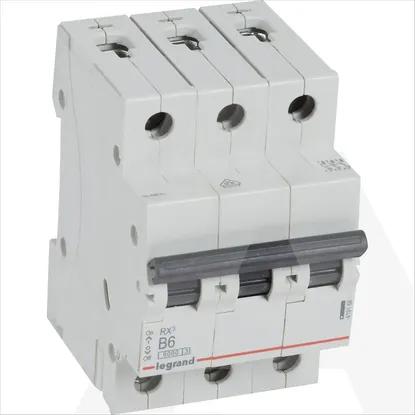

419166 | RX3 AUTOM OSIG 3P B 6A 6KA 3M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 4 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Rated current
6A
Built-in depth
44mm
Current limiting class
3
Width in number of modular spacings
3
Frequency
50 .. 60Hz
Release characteristic
B
Pollution degree
2
Over voltage category
-
Rated voltage
400V
Rated insulation voltage Ui
500V
Concurrently switching neutral conductor
Ambient temperature during operating
- .. -°C
Connectable conductor cross section solid-core
- .. -mm²
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
Connectable conductor cross section multi-wired
- .. -mm²
Additional equipment possible
Number of protected poles
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Number of poles (total)
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
