Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •12 KOM
  • •LEGRAND

Technical specifications

Rated current20A
Rated voltage230V
Built-in depth44mm
Rated insulation voltage Ui500V
Voltage typeAC
Frequency50 - 60Hz
Release characteristicC
Connectable conductor cross section multi-wired- - -mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationYes
Width in number of modular spacings1
Over voltage category-
Number of protected poles1
Current limiting class3
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Additional equipment possibleNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Pollution degree2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

419203 | RX3 AUTOM OSIG 1P C 20A 6KA 1M

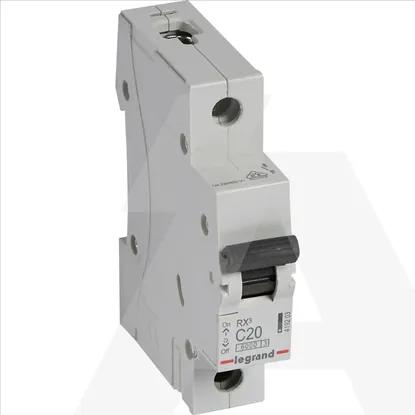

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 12 KOM
  • LEGRAND

Technical specifications

Rated current

20A

Rated voltage

230V

Built-in depth

44mm

Rated insulation voltage Ui

500V

Voltage type

AC

Frequency

50 .. 60Hz

Release characteristic

C

Connectable conductor cross section multi-wired

- .. -mm²

Rated impulse withstand voltage Uimp

4kV

Connectable conductor cross section solid-core

- .. -mm²

Degree of protection (IP)

IP20

Concurrently switching neutral conductor

Suitable for flush-mounted installation

Width in number of modular spacings

1

Over voltage category

-

Number of protected poles

1

Current limiting class

3

Ambient temperature during operating

- .. -°C

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Number of poles (total)

1

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

6kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Pollution degree

2

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
