Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •6 KOM
- •LEGRAND
Technical specifications
Rated voltage400V
Voltage typeAC
Built-in depth44mm
Rated current50A
Frequency50 - 60Hz
Width in number of modular spacings2
Release characteristicC
Rated insulation voltage Ui500V
Current limiting class3
Pollution degree2
Over voltage category-
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core- - -mm²
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired- - -mm²
Additional equipment possibleNo
Number of protected poles2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

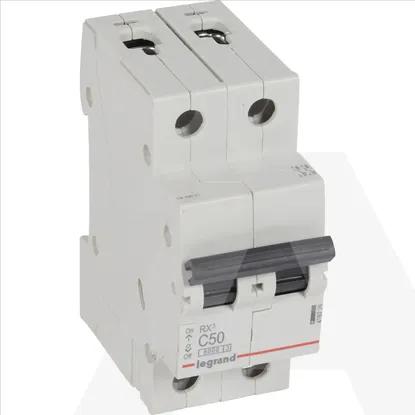

419229 | RX3 AUTOM OSIG 2P C 50A 6KA 2M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 6 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated voltage
400V
Voltage type
AC
Built-in depth
44mm
Rated current
50A
Frequency
50 .. 60Hz
Width in number of modular spacings
2
Release characteristic
C
Rated insulation voltage Ui
500V
Current limiting class
3
Pollution degree
2
Over voltage category
-
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
- .. -mm²
Ambient temperature during operating
- .. -°C
Suitable for flush-mounted installation
Connectable conductor cross section multi-wired
- .. -mm²
Additional equipment possible
Number of protected poles
2
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Number of poles (total)
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Rated impulse withstand voltage Uimp
4kV
