Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •4 KOM
- •LEGRAND
Technical specifications
Over voltage category-
Frequency50 - 60Hz
Built-in depth44mm
Rated current20A
Voltage typeAC
Release characteristicC
Current limiting class3
Rated insulation voltage Ui500V
Rated voltage400V
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorNo
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Width in number of modular spacings3
Additional equipment possibleNo
Connectable conductor cross section multi-wired- - -mm²
Number of protected poles3
Number of poles (total)3
Degree of protection (IP)IP20
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

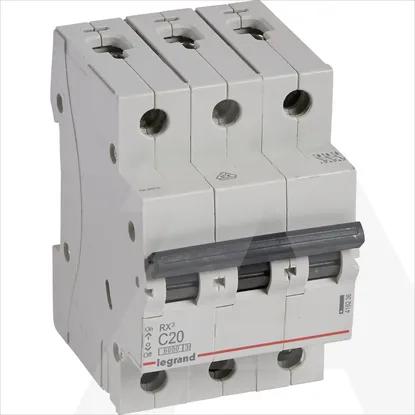

419236 | RX3 AUTOM OSIG 3P C 20A 6KA 3M
