Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact2
Conditioned rated short-circuit current Iq20kA
Rated operating voltage400 - 1000V
Version as safety switchYes
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Number of switches-
Motor drive integratedNo
Rated permanent current Iu630A
Degree of protection (IP), front sideIP2X
Type of electrical connection of main circuitBolt connection
Number of poles4
Number of auxiliary contacts as normally closed contact2
Type of control elementLong turning handle
Version as emergency stop installationNo
InterlockableNo
Colour control elementBlack
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated short-time withstand current lcw13kA
Rated operation power at AC-23, 400 V250kW
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V-kW
Voltage release optionalNo
Version as reversing switchYes
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V630A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

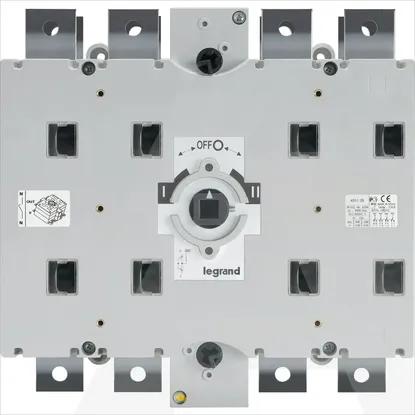

431129 | DCX-M SKL RUC IZM NAP 630A 4P
