Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated permanent current Iu800A
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of poles4
Rated operating voltage400 - 1000V
Degree of protection (IP), front sideIP2X
Version as safety switchYes
Motor drive integratedNo
Conditioned rated short-circuit current Iq20kA
Rated short-time withstand current lcw13kA
Colour control elementBlack
Rated operation power at AC-23, 400 V315kW
Suitable for floor mountingNo
Version as emergency stop installationNo
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Version as main switchYes
Motor drive optionalNo
Type of electrical connection of main circuitBolt connection
InterlockableNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Rated permanent current at AC-21, 400 V800A
Number of switches-
Type of control elementLong turning handle
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Version as reversing switchYes
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

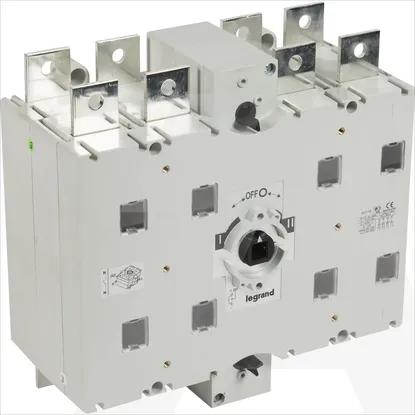

431130 | DCX-M SKL RUC IZM NAP 800A 4P
