Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of poles4
Number of auxiliary contacts as normally open contact2
Rated permanent current Iu1600A
Number of auxiliary contacts as normally closed contact2
Conditioned rated short-circuit current Iq75kA
Rated operation power at AC-3, 400 V-kW
Rated operating voltage400 - 1000V
Number of auxiliary contacts as change-over contact0
Number of switches-
InterlockableNo
Degree of protection (IP), front sideIP2X
Motor drive integratedNo
Version as safety switchYes
Colour control elementBlack
Rated operation power at AC-23, 400 V554.2kW
Suitable for distribution board installationYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as emergency stop installationNo
Version as main switchYes
Rated short-time withstand current lcw50kA
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V1600A
Motor drive optionalNo
Switching power at 400 V-kW
Version as reversing switchYes
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

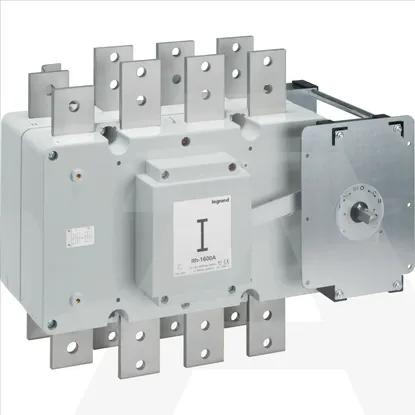

431133 | DCX-M SKL RUC IZM NAP 1600A 4P
