Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Protection classII
Type of control gearLED operating device current-controlled
Conductor cross section2.5mm²
Mounting methodWall surface mounted
Lamp holderOther
Width110mm
Voltage typeAC
Colour housingWhite
Built-in diameter-mm
Suitable for labelling typeSticker
FunctionEscape route lighting/signage
Type of indicatorOnly single-sided
Outer diameter-mm
Connection typeOther
Built-in width-mm
Wiring systemStandby switching
Length210mm
Lamp typeLED not exchangeable
Material housingPlastic
Height/depth41mm
Number of poles4
Power supply systemPeripheral (individual battery)
Degree of protection (IP)IP42
Material coverPlastic, opal
Impact strengthIK07
Luminaire with limited surface temperature, sign "D“No
Number of lighting heads1
Built-in length-mm
Max. system power7W
Battery qualityNiCd
Colour temperature5700 - 5700K
Recognition distance-m
With pictogramNo
Suitable for number of lamps-
With remote switch connectionNo
Rated luminous flux according to IEC 62722-2-170lm
Nominal voltage230 - 230V
With light sourceYes
Monitoring equipmentNone
Rated life time L90/B50 at 25 °C-h
Rated life time L80/B10 at 25 °C-h
Rated life time L90/B10 at 25 °C-h
Rated life time L70/B10 at 25 °C-h
Rated life time L70/B50 at 25 °C-h
Rated life time L80/B50 at 25 °C100000h
Luminous flux in standby mode0lm
Nominal operation time1 - 1h
Built-in height/depth-mm
Light distributorDiffuser lens/optic/panel
Power factor-
Rated ambient temperature according to IEC62722-2-1- - -°C
Energy efficiency class of the built-in lampA++, A+, A (LED)
LED nominal current at constant current30 - 30mA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

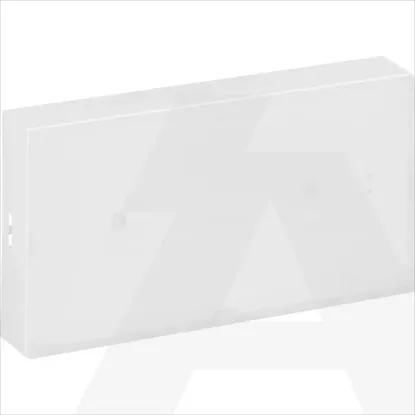

661620 | URAONE IP42 IK7 1H70LM NI-CD
