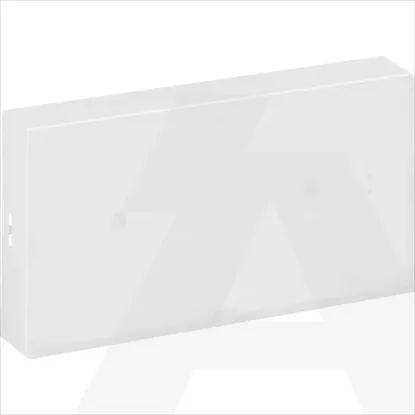

661621 | Uraone IP42 IK7 1H100LM Ni-cd
Code: 1781125
ManufacturerLegrand
Catalog number661621
TypeLegrand 661621
CategoryEmergency luminaire
EAN code3414970312174
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Outer diameter-mm
Voltage typeAC
Conductor cross section2.5mm²
Type of control gearLED operating device current-controlled
Width110mm
Protection classII
Colour housingWhite
Connection typeOther
Lamp holderOther
Power supply systemPeripheral (individual battery)
Built-in width-mm
Type of indicatorOnly single-sided
Suitable for labelling typeSticker
Built-in diameter-mm
Lamp typeLED not exchangeable
Impact strengthIK07
Height/depth41mm
Length210mm
Built-in length-mm
Number of poles4
Material housingPlastic
Number of lighting heads1
Battery qualityNiCd
Material coverPlastic, opal
Wiring systemStandby switching
Luminaire with limited surface temperature, sign "D“No
Nominal voltage230 - 230V
With remote switch connectionNo
Colour temperature5700 - 5700K
With light sourceYes
Rated luminous flux according to IEC 62722-2-1100lm
Recognition distance-m
Suitable for number of lamps-
Monitoring equipmentNone
Rated life time L70/B10 at 25 °C-h
With pictogramNo
Rated life time L90/B50 at 25 °C-h
Rated life time L80/B10 at 25 °C-h
LED nominal current at constant current43 - 43mA
Energy efficiency class of the built-in lampA++, A+, A (LED)
Rated ambient temperature according to IEC62722-2-1- - -°C
Luminous flux in standby mode0lm
Rated life time L90/B10 at 25 °C-h
Rated life time L80/B50 at 25 °C100000h
Power factor-
Light distributorDiffuser lens/optic/panel
Nominal operation time1 - 1h
Rated life time L70/B50 at 25 °C-h
Built-in height/depth-mm
Mounting methodWall surface mounted
FunctionEscape route lighting/signage
Degree of protection (IP)IP42
Max. system power10W
