Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodWall surface mounted
Protection classII
Width110mm
Conductor cross section2.5mm²
FunctionEscape route lighting/signage
Voltage typeAC
Connection typeOther
Lamp holderOther
Outer diameter-mm
Colour housingWhite
Power supply systemPeripheral (individual battery)
Suitable for labelling typeSticker
Type of control gearLED operating device current-controlled
Wiring systemStandby switching
Number of lighting heads1
Built-in diameter-mm
Built-in length-mm
Lamp typeLED not exchangeable
Length210mm
Material housingPlastic
Height/depth41mm
Number of poles4
Type of indicatorOnly single-sided
Built-in width-mm
Material coverPlastic, opal
Impact strengthIK07
Nominal voltage230 - 230V
With remote switch connectionNo
Battery qualityNiCd
Degree of protection (IP)IP42
With light sourceYes
Rated life time L70/B10 at 25 °C-h
Max. system power16W
Colour temperature5700 - 5700K
Rated life time L90/B10 at 25 °C-h
Rated luminous flux according to IEC 62722-2-1160lm
Rated life time L80/B50 at 25 °C100000h
Rated life time L70/B50 at 25 °C-h
Monitoring equipmentNone
Luminaire with limited surface temperature, sign "D“No
Rated life time L80/B10 at 25 °C-h
Recognition distance-m
Rated life time L90/B50 at 25 °C-h
With pictogramNo
Suitable for number of lamps-
Luminous flux in standby mode0lm
Rated ambient temperature according to IEC62722-2-1- - -°C
LED nominal current at constant current70 - 70mA
Light distributorDiffuser lens/optic/panel
Energy efficiency class of the built-in lampA++, A+, A (LED)
Power factor-
Built-in height/depth-mm
Nominal operation time1 - 1h
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

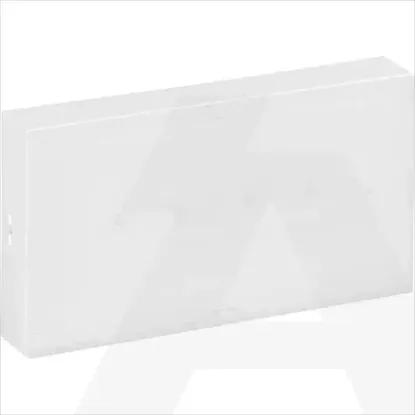

661622 | URAONE IP42 IK7 1H160LM NI-CD
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Mounting method
Wall surface mounted
Protection class
II
Width
110mm
Conductor cross section
2.5mm²
Function
Escape route lighting/signage
Voltage type
AC
Connection type
Other
Lamp holder
Other
Outer diameter
-mm
Colour housing
White
Power supply system
Peripheral (individual battery)
Suitable for labelling type
Sticker
Type of control gear
LED operating device current-controlled
Wiring system
Standby switching
Number of lighting heads
1
Built-in diameter
-mm
Built-in length
-mm
Lamp type
LED not exchangeable
Length
210mm
Material housing
Plastic
Height/depth
41mm
Number of poles
4
Type of indicator
Only single-sided
Built-in width
-mm
Material cover
Plastic, opal
Impact strength
IK07
Nominal voltage
230 .. 230V
With remote switch connection
Battery quality
NiCd
Degree of protection (IP)
IP42
With light source
Rated life time L70/B10 at 25 °C
-h
Max. system power
16W
Colour temperature
5700 .. 5700K
Rated life time L90/B10 at 25 °C
-h
Rated luminous flux according to IEC 62722-2-1
160lm
Rated life time L80/B50 at 25 °C
100000h
Rated life time L70/B50 at 25 °C
-h
Monitoring equipment
None
Luminaire with limited surface temperature, sign "D“
Rated life time L80/B10 at 25 °C
-h
Recognition distance
-m
Rated life time L90/B50 at 25 °C
-h
With pictogram
Suitable for number of lamps
-
Luminous flux in standby mode
0lm
Rated ambient temperature according to IEC62722-2-1
- .. -°C
LED nominal current at constant current
70 .. 70mA
Light distributor
Diffuser lens/optic/panel
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Power factor
-
Built-in height/depth
-mm
Nominal operation time
1 .. 1h
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
